Cage System Adapter Plate

#86-846

×
  • Interfaces Between TECHSPEC Optical Cage System and Other Cage Systems
  • Adapts 30mm Rod Spacing to TECHSPEC Cage System’s 38mm Bolt Circle
  • 32mm Inner Diameter

The TECHSPEC® Cage System Adapter Plate is designed to easily interface between TECHSPEC Optical Cage System components and other cage systems. The TECHSPEC Cage System Adapter Plate uses four counterbore holes at 30mm spacing to mount to the end of other cage systems’ tapped rods. A TECHSPEC Cage System standard cage plate can then be attached to the TECHSPEC Cage System Adapter Plate using eight M3 tapped holes. A set of 4-40 cap screws are included.

Products

 Plate Inner Diameter (mm)   Dimensions (mm)   Bolt Circle Diameter for M3 C'bore (mm)   Bolt Circle Diameter for M3 Thru (mm)   Compare  Stock Number  Price Buy
32.0 42 Sq. 42.42 (30.0 Sq.) 38.0

Technical Information

Related Products

Resources

Filter

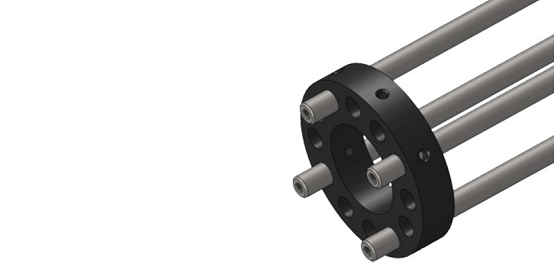

Getting Started Using the Cage System Components Kit

The TECHSPEC cage system components kit allows you to create a simple or base of a system. Find out more about the contents of the kit at Edmund Optics.

View Now

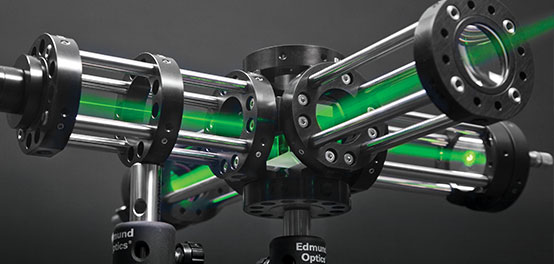

Optical Cage System Application: Michelson Interferometer

Need to create a Michelson Interferometer? Find out how the TECHSPEC Optical Cage System can be an ideal solution at Edmund Optics.

View Now

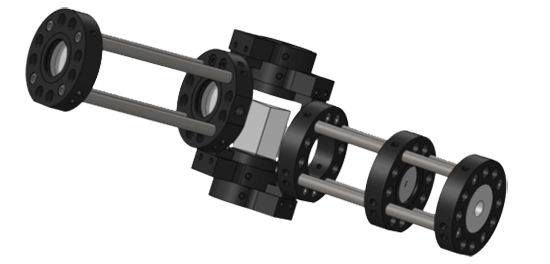

Optical Cage System Design Examples

Not sure how you can enhance an opical cage system? Check out examples of different design examples applicable for small and large systems at Edmund Optics.

View Now

Using C-Mount Components with the Optical Cage System

Edmund Optics' fixed, adjustable, and kinematic mounting components can easily be integrated into optical systems.

View Now

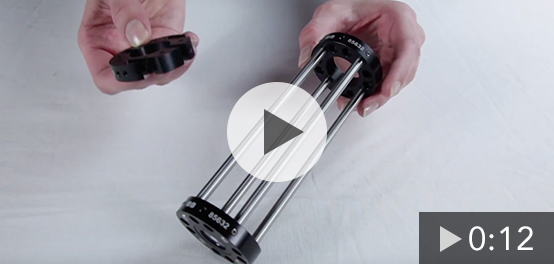

Four-Rod Insertion Plate

This is a quick demonstration of integrating a four-rod insertion plate with a sample cage system using #85-643.

View Now

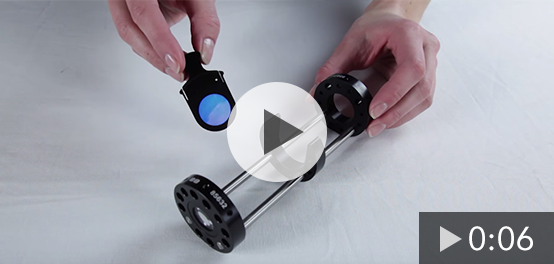

Filter Holder Plate and Interchangeable Filter Holder

Easily add and remove optical filters from any cage system setup after viewing this quick demonstration of integrating a filter holder plate and interchangeable filter holder using #86-018 and #85-649.

View Now

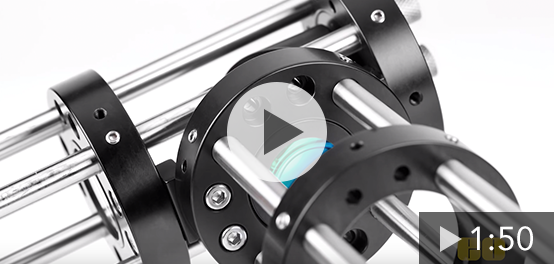

Introduction to the TECHSPEC Optical Cage System

Designed for modularity and flexibility, Edmund Optics' TECHSPEC Optical Cage System components are high precision alternatives to complex optical alignment systems.

View Now

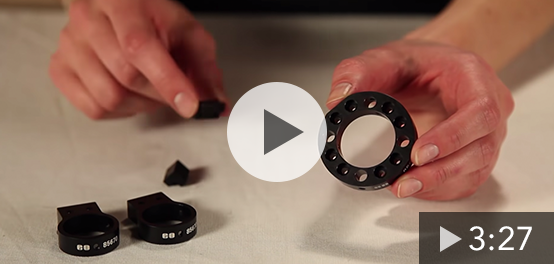

How to Build a Swivel Joint Assembly

Quick demonstration with step-by-setup instructions for building an optical cage system swivel joint assembly.

View Now

Integrating a Linear Translation Assembly into Optical Cage Systems

Do you need to add linear translation to an optical cage system? Find step by step instructions for incorporating a linear translation assembly at Edmund Optics.

View Now

Interchangeable Optical Mount and Side Access Mounting Plate

This is a quick video demonstration of integrating an optical cage system interchangeable optical mount and side access mounting plate using #85-717 and #85-641.

View Now

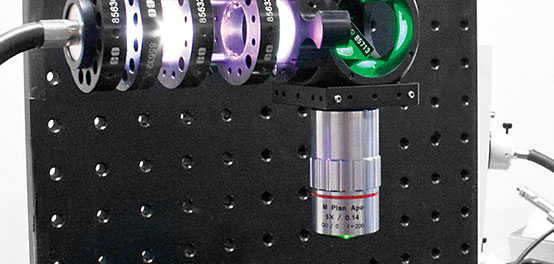

Optical Cage System Application: Digital Video Microscope
