Acktar Light Absorbent Foil and Film Rolls feature MaxiBlack™, Metal Velvet™, and Spectral Black™ light absorbent coatings on large 25m rolls. Acktar black coatings are used in optical applications to reduce stray light, improve signal to noise ratio, and eliminate unwanted reflections. These completely inorganic coatings have wideband performance from the UV to IR, a broad operating temperature range, high vibration stability, and low outgassing. Acktar Light Absorbent Foil and Film Rolls are ideal for volume applications in aerospace, automotive, defense, and remote sensing where large areas require blackening.
Note: Please contact us for longer Acktar Light Absorbent Foil and Film Rolls.
Dimensions (cm) | Coating | Type | Compare | Stock Number | Price | Buy | |
---|---|---|---|---|---|---|---|
20 x 500 | Spectral Black™ | No Adhesive |
#72-866
New
|
€1.045,00 Request Quote |
|
||
20 x 500 | Spectral Black™ | Standard Adhesive |
#72-867
New
|
€1.155,00 Request Quote |
|
||
20 x 500 | Spectral Black™ | Low Outgassing Adhesive |
#72-868
New
|
€1.375,00 Request Quote |
|
||
20 x 500 | Metal Velvet™ | No Adhesive |
#72-869
New
|
€1.045,00 Request Quote |
|
||
20 x 500 | Metal Velvet™ | Standard Adhesive |
#72-870
New
|
€1.155,00 Request Quote |
|
||
20 x 500 | Metal Velvet™ | Low Outgassing Adhesive |
#72-871
New
|
€1.375,00 Request Quote |
|
||
20 x 500 | MaxiBlack™ | No Adhesive |
#72-872
New
|
€1.045,00 Request Quote |
|
||
20 x 500 | MaxiBlack™ | Standard Adhesive |
#72-873
New
|
€1.155,00 Request Quote |
|
||
20 x 500 | MaxiBlack™ | Low Outgassing Adhesive |
#72-874
New
|
€1.375,00 Request Quote |
|
||
20 x 1000 | Spectral Black™ | No Adhesive |
#72-875
New
|
€1.570,00 Request Quote |
|
||
20 x 1000 | Spectral Black™ | Standard Adhesive |
#72-876
New
|
€1.680,00 Request Quote |
|
||
20 x 1000 | Spectral Black™ | Low Outgassing Adhesive |
#72-877
New
|
€1.790,00 Request Quote |
|
||
20 x 1000 | Metal Velvet™ | No Adhesive |
#72-878
New
|
€1.570,00 Request Quote |
|
||
20 x 1000 | Metal Velvet™ | Standard Adhesive |
#72-879
New
|
€1.680,00 Request Quote |
|
||
20 x 1000 | Metal Velvet™ | Low Outgassing Adhesive |
#72-880
New
|
€1.790,00 Request Quote |
|
||
20 x 1000 | MaxiBlack™ | No Adhesive |
#72-881
New
|
€1.570,00 Request Quote |
|
||
20 x 1000 | MaxiBlack™ | Standard Adhesive |
#72-882
New
|
€1.680,00 Request Quote |
|
||
20 x 1000 | MaxiBlack™ | Low Outgassing Adhesive |
#72-883
New
|
€1.790,00 Request Quote |
|
||
20 x 2500 | Spectral Black™ | No Adhesive | #17-440 | €3.300,00 Request Quote |
|
||
20 x 2500 | Spectral Black™ | Standard Adhesive | #17-441 | €3.525,00 Request Quote |
|
||
20 x 2500 | Spectral Black™ | Low Outgassing Adhesive | #17-442 | €3.745,00 Request Quote |
|
||
20 x 2500 | Metal Velvet™ | No Adhesive | #17-443 | €3.300,00 Request Quote |
|
||
20 x 2500 | Metal Velvet™ | Standard Adhesive | #17-444 | €3.525,00 Request Quote |
|
||
20 x 2500 | Metal Velvet™ | Low Outgassing Adhesive | #17-445 | €3.745,00 Request Quote |
|
||
20 x 2500 | MaxiBlack™ | No Adhesive | #17-446 | €3.300,00 Request Quote |
|
||
20 x 2500 | MaxiBlack™ | Standard Adhesive | #17-447 | €3.525,00 Request Quote |
|
||
20 x 2500 | MaxiBlack™ | Low Outgassing Adhesive | #17-448 | €3.745,00 Request Quote |
|
||
20 x 5000 | Spectral Black™ | No Adhesive | #17-449 | €5.840,00 Request Quote |
|
||
20 x 5000 | Spectral Black™ | Standard Adhesive | #17-450 | €6.060,00 Request Quote |
|
||
20 x 5000 | Spectral Black™ | Low Outgassing Adhesive | #17-451 | €6.280,00 Request Quote |
|
||
20 x 5000 | Metal Velvet™ | No Adhesive | #17-452 | €5.840,00 Request Quote |
|
||
20 x 5000 | Metal Velvet™ | Standard Adhesive | #17-453 | €6.060,00 Request Quote |
|
||
20 x 5000 | Metal Velvet™ | Low Outgassing Adhesive | #17-454 | €6.280,00 Request Quote |
|
||
20 x 5000 | MaxiBlack™ | No Adhesive | #17-455 | €5.840,00 Request Quote |
|
||
20 x 5000 | MaxiBlack™ | Standard Adhesive | #17-456 | €6.060,00 Request Quote |
|
||
20 x 5000 | MaxiBlack™ | Low Outgassing Adhesive | #17-457 | €6.280,00 Request Quote |
|

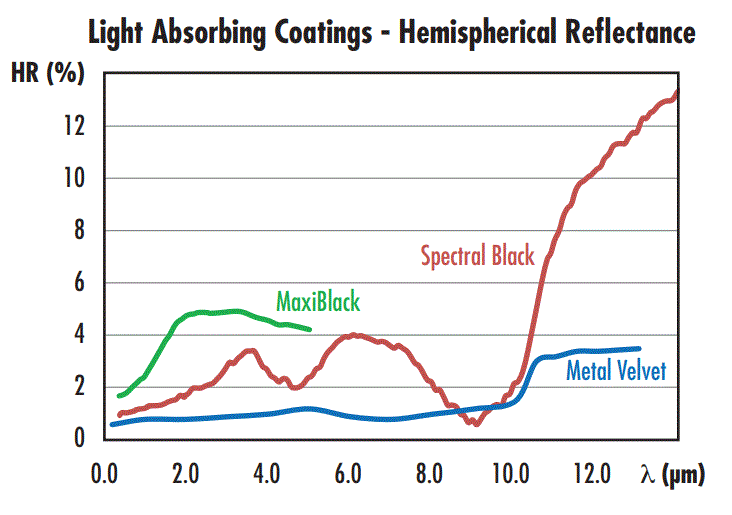

Acktar Light Absorbent Foil and Film Rolls are offered in Metal Velvet (diffusive coating on aluminum), Spectral Black (semi-specular coating on aluminum), or MaxiBlack (diffusive coating on polyimide). Metal Velvet offers superior light absorption performance while Spectral Black is more durable. Maxiblack, in addition to being durable and flexible, is nonconductive and can be used in applications that require light absorbing materials with no electrical conductivity.
