Barium Fluoride (BaF2) Windows

×

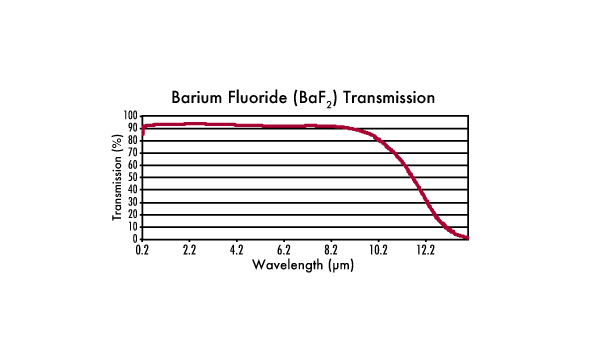

  • Excellent Transmission from 200nm - 12μm
  • Resistant to High-Energy Radiation
  • Provide High Transmission without AR Coatings

Common Specifications

Coefficient of Thermal Expansion CTE (10-6/°C):
18.1
Density (g/cm3):
4.89
Abbe Number (vd):
81.78
Index of Refraction nd:
1.48
Substrate:
Barium Fluoride (BaF2)
Surface Quality:
60-40
Bevel:
Protective as needed
Edges:
Fine Ground
Knoop Hardness (kg/mm2):
82
Parallelism (arcmin):
<3
Poisson's Ratio:
0.343
Young's Modulus (GPa):
53
Dia. (mm)  Thickness (mm)   Coating   Compare   Stock Number   Price  Buy
Uncoated 5.00 1.00 #87-699 €117,00 Qty 11+ €106,00   Request Quote
  • 3-4 days
    ×

Uncoated 12.50 2.00 #87-700 €172,00 Qty 11+ €154,00   Request Quote
  • 3-4 days
    ×

Uncoated 25.00 3.00 #87-701 €268,00 Qty 11+ €241,00   Request Quote
  • In Stock
    ×

Uncoated 25.40 3.00 #18-362 €268,00 Qty 11+ €241,00   Request Quote
  • 3-4 days
    ×

Uncoated 50.00 3.00 #87-702 €645,00 Qty 11+ €580,00   Request Quote
  • 3-4 days
    ×

Uncoated 50.80 3.00 #18-363 €645,00 Qty 11+ €580,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 5.00 1.00 #23-526 €164,00 Qty 11+ €148,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 12.50 2.00 #23-527 €218,00 Qty 11+ €197,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 12.70 2.00 #23-528 €218,00 Qty 11+ €197,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 25.00 3.00 #23-529 €315,00 Qty 11+ €283,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 25.40 3.00 #23-530 €315,00 Qty 11+ €283,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 50.00 3.00 #23-531 €700,00 Qty 11+ €630,00   Request Quote
  • 3-4 days
    ×

BBAR (2000-5000nm) 50.80 3.00 #23-532 €700,00 Qty 11+ €630,00   Request Quote
  • 3-4 days
    ×


TECHSPEC® Barium Fluoride (BaF2) Windows can be used in a variety of applications, such as infrared spectroscopy, due to their wide broadband transmission that extends from the deep ultraviolet to the long-wave infrared. Barium fluoride’s low index of refraction of 1.48 provides high transmission without the need for anti-reflection coatings. Barium fluoride windows can be used up to 800°C in a dry environment, but prolonged exposure to moisture can degrade transmission in the ultraviolet range. While barium fluoride windows are less resistant to water than calcium fluoride, BaF2 windows are the most resistant optical fluoride to high-energy radiation, but feature lower UV transmittance. BaF2 has a Knoop hardness of 82.

Note: These optical windows are very sensitive to thermal shock.

Barium fluoride is a fast scintillator and can be used to detect X-rays, gamma rays, or other high energy particles such as 511 keV gamma photons in Positron Emission Tomography (PET). BaF2 can also be used to detect high-energy neutrons and separate them from simultaneously occurring gamma photons using pulse shape discrimination techniques.
